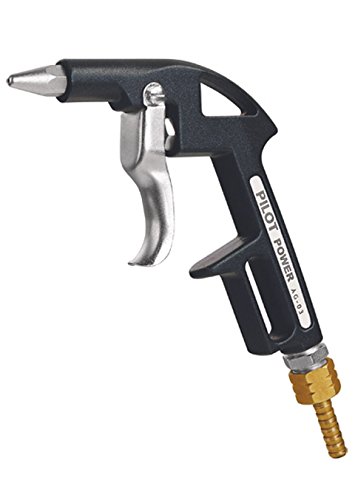

Description Pilot Air Blow Gun AG-03 HSN:8424 Pilot Air Blow Gun is a handy air-powered tool which can be utilized for the effective removal of dust, dirt, and chips to blow moisture out of joints and crevices before painting, to clean gasoline and oil lines, to clean machines moulds, foundries and for numerous other purposes. Pilot Air Blow Gun Operation: 1. Connect Air Gun to a suitable compressor or pressurized air source. Use a flexible air hose fitted with a hose coupling. 2. Start operation by pulling the gun’s trigger. 3. The Air Gun is now taken in and blown on to the selected surface. Technical data : Fluid nozzle orifice dia.(mm) : 3 Min.required pressure(kgs/sq.cm) : 3-4 Air consumption of rated pressure lit/min(c.f.m) : 212 (7.5) Min. Air-compressor (HP) : 1-2 Weight of gun(gms) : 220 Product Documentation: Click Here. Shop more products from Pilot: Click Here.
